22KW Portable EV Charger D022PX1-01

GET A QUOTE
Product External Name D070PX1-01 D011PX1-01 D022PX1-01 D096PX1-01
Basic
Parameters		 Charge Connector Mennekes Type 2 J1772 Type 1
Power Phase AC220V 50/60Hz  Single Phase AC380V 50/60Hz Three Phase AC240V，60Hz
Power Connector Schuko, BS Plug 3-Pin Blue CEE 5-pin Blue CEE 5-pin Red CEE NEMA 14-50P
Power Output 3.5 KW 7 KW 11 KW 22 KW 40A
Electric Current 16A 32A 16A 32A 40A
Adjustable Current Adjust freely by the APP Adjust freely by the APP
Cable Length 5 Meters(Customizable) 5 Meters(Customizable)
Package Product size 254*100.5*65mm 254*100.5*65mm
Packing size 468*398*90mm 468*398*90mm
Net Weight 2.2KG 3KG 3.3KG 4.4KG 4.9KG
Gross Weight 3.1KG 3.9KG 4.2KG 5.3KG 5.8KG
Smart
Function		 LCD Display 2.4 inch LCD display screen+LED light 2.4 inch LCD display screen+LED light
LCD Language English(Customizable) English(Customizable)
Wireless Function APP(WIFI + Bluetooth)(Customizable) APP(WIFI + Bluetooth)(Customizable)
Charging Scheduling Schedule off-peak charging via panel buttons or a dedicated app with Bluetooth/Wi-Fi connectivity‌ ‌ Schedule off-peak charging via panel buttons or a dedicated app with Bluetooth/Wi-Fi connectivity‌ ‌
Working
Environment		 Working Temperature ‘’-25℃~55℃ ‘’-25℃~55℃
Ambient Humidity 5%~95% RH 5%~95% RH
Elevation <2000m <2000m
Safety IP Degree IP65 IP65
Fire Rating V0 V0
Safety Protections Overvoltage、Overcurrent、Low-voltage、ESD、Lighting、Overcharge、Overload、Fire、Overheat、Waterproof、Leakage and Chip Protection Overvoltage、Overcurrent、Low-voltage、ESD、Lighting、Overcharge、Overload、Fire、Overheat、Waterproof、Leakage and Chip Protection

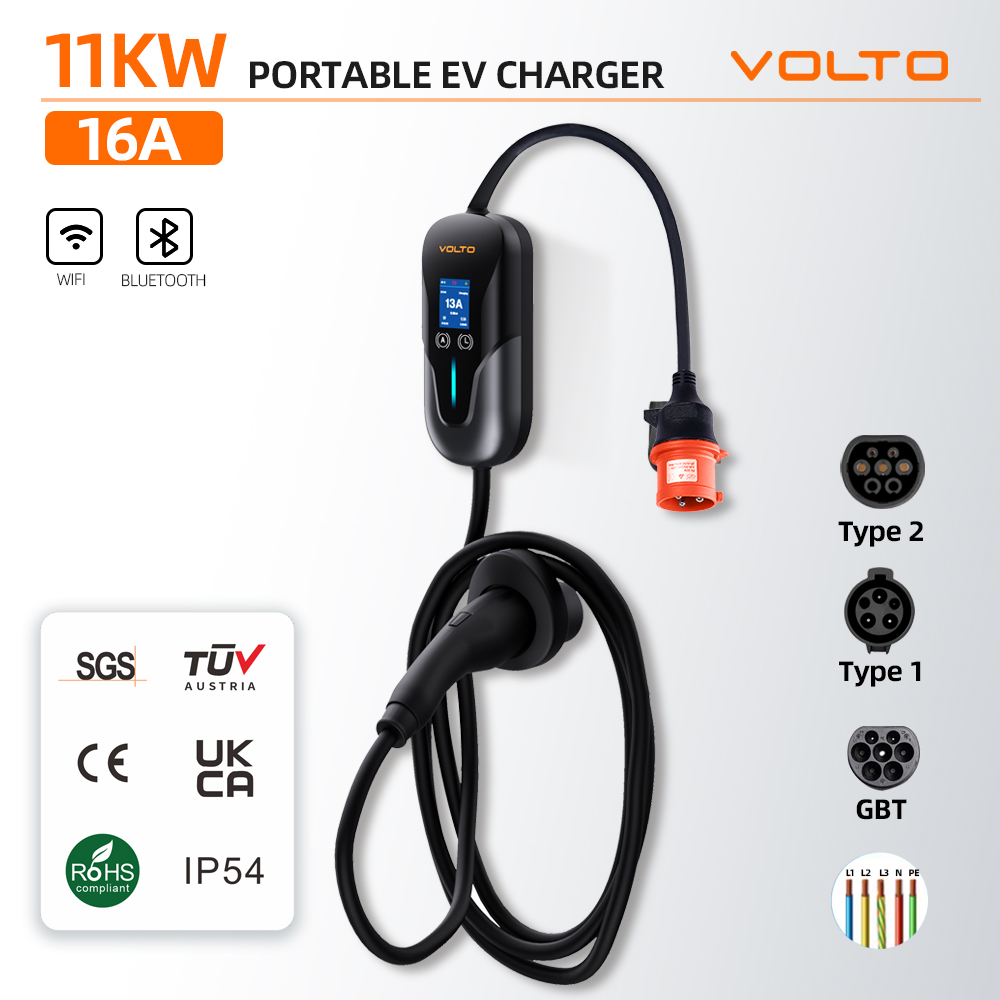

Certificate CE  EMC ROHS  FCC CE  EMC ROHS  FCC11KW Portable EV Charger D011PX1-01
